    A8000

    The Quartzlock A8000 is a breakthrough in low cost, traceable, calibration free, off-air frequency & time standards which maintains the high accuracy required for demanding applications.

    Features

    • Low phase noise
    • No drift
    • High stability
    • 2 year warranty

    Benefits

    • No calibration required
    • Traceable reference
    • Accurate & stable to internationally recognised measurement institutions

    Applications

    • Test solution frequency & timing reference
    • Calibration
    • Reference for RF-microwave instrumentation
    • Production test frequency standard
    • Network time protocol use in financial and utilities companies
    • Security & communications timing

    Output Frequency10MHz
    Output Level7dBm
    Number of Outputs1
    STS1s3x10-11
    STS10s 1x10-11
    STS100s3x10-12
    Aging 1 Day 3x10-12
    Aging 1 Month4x10-11
    Aging 1 Year 5x10-10
    Phase Noise 100Hz120dBc
    Phase Noise 1kHz 140dBc
    Phase Noise 10kHz145dBc
    Harmonics dBc40dBc
    Spurious dBc80dBc
    Warm Time5 min
    Retrace3x10-11
    PSU Nominal 24V
    PSU Min 22V
    PSU Max30V
    Current500mA warm
    SupplyDC

    Product Options:

    This product can have the following options applied to change its specification

    Option N - No Options Available
low noise electronics & physics for frequency & phase comparison

Images & Information
A8000
Enlarge

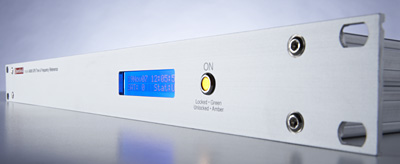

1U rack mounted, traceable, calibration-free, GPS disciplined OCXO frequency standard
