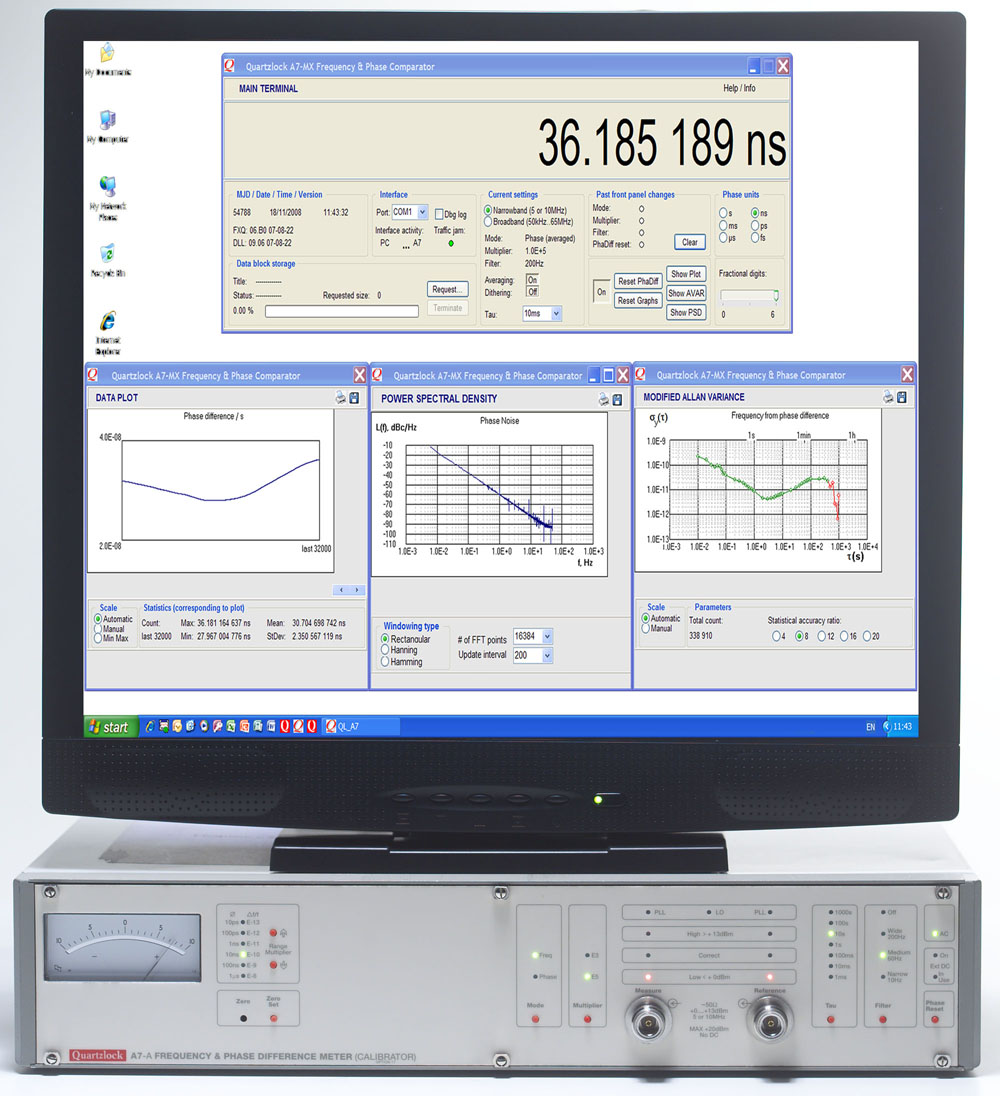

A7-MX

The A7-MX is the substantially enhanced successor to Quartzlock’s industry-leading A7 line. The A7-MX can save 40% of oscillator research, development and production test time.

This exciting new analyser includes major additional facilities: relative and absolute counting of the input frequency over a broadband of input frequencies with comprehensive input conditioning.

Innovative averaging, dithering & scrambling noise reduction techniques are used in the stroboscopic phase meter, phase comparator & time interval counter. Temperature stabilisation of the comparator & error multiplier enable close to zero thermal impedance between components.  Averaging also reduces passive component noise.

Scrambling reduces noise to 3 x 10-13/s in the stroboscopic phase meter. The new virtual front panel enables selection of averaging, (which auto selects scrambling) at gate times of >50ms.

Averaging & scrambling optimisation with gate time gives the best estimate of phase measurement available & improves further with longer gate times.

Standard Specification:

Product Options:

This product can have the following options applied to change its specification

Option 00 - Seamless Battery Back-up Switch

---

Option 01 - Distribution Card 1 Input 4 Outputs
Number of Outputs4
STS1s1x10-13
STS10s 3x10-14
STS100s1x10-14
Phase Noise 1Hz140
Phase Noise 100Hz165
Phase Noise 1kHz 165
Phase Noise 10kHz165
Harmonics dBc40
Spurious dBc110
PSU Nominal 24
Current1
SupplyDC

---

Option 16 - Add LPRO Rubidium Oscillator
Output Frequency10MHz
Output Level7dBm
Number of Outputs1
STS1s3x10-11
STS10s 1x10-11
STS100s3x10-12
Aging 1 Day 3x10-12
Aging 1 Month4x10-11
Aging 1 Year 5x10-10
Phase Noise 100Hz120dBc
Phase Noise 1kHz 140dBc
Phase Noise 10kHz145dBc
Harmonics dBc40dBc
Spurious dBc80dBc
Warm Time5 min
Retrace3x10-11
PSU Nominal 24V
PSU Min 22V
PSU Max30V
Current500mA warm
SupplyDC

---

Option 17 - Add QL10 FRS High Performance Rubidium Oscillator
Output Frequency10MHz
Output Level8dBm
Number of Outputs1
STS1s2x10-11
STS10s 1x10-11
STS100s2x10-12
Aging 1 Month5x10-11
Aging 1 Year 5x10-10
Phase Noise 100Hz140dBc
Phase Noise 1kHz 150dBc
Phase Noise 10kHz155dBc
Harmonics dBc25dBc
Spurious dBc130dBc
Warm Time6min
Retrace5x10-11
PSU Nominal 24V
PSU Min 22v
PSU Max30V
OT Min -20C
OT Max65C
Current1.2A
SupplyDC
ST Min-55C
ST Max85C

---

Option 18 - Add Additional 1 to 5 Years Warranty (18.1 = 1 Year … 18.5 = 5 Years)

---

Option 32 - Stable 32 Analysis Software

---

Option 34 - 1U Rack Mount Computer

---

Option 36 - Training

---

Option 37 - 0.2MHz to 1000MHz Power Splitter

---
