    A5-4

    The Quartzlock A5 distribution amplifier is a precision amplifier for use with frequency standards or other signals where a need for multiple outputs from a single generator is required. Versions are available in 4 output Eurocard (160 x 100mm) or complete instruments with 4 outputs

    Features

    • Bipolar junction amplifiers
    • 24v DC operation
    • High isolation between inputs and outputs
    • Low phase noise
    • High stability
    • Low harmonic distortion

    Benefits

    • Hydrogen maser compatible performance
    • Retains original input signal characteristics

    Applications

    • National standards laboratories
    • Calibration laboratories
    • Research and development
    • OEM use of 4 output Eurocard
    • Production test

    Number of Outputs4
    STS1s1x10-13
    STS10s 3x10-14
    STS100s1x10-14
    Phase Noise 1Hz140
    Phase Noise 100Hz165
    Phase Noise 1kHz 165
    Phase Noise 10kHz165
    Harmonics dBc40
    Spurious dBc110
    PSU Nominal 24
    Current1
    SupplyDC

    Product Options:

    This product can have the following options applied to change its specification

    Option 18 - Add Additional 1 to 5 Years Warranty (18.1 = 1 Year … 18.5 = 5 Years)
    Option 39 - Tuned Outputs
low noise electronics & physics for frequency & phase comparison

Images & Information
A5-4
Enlarge

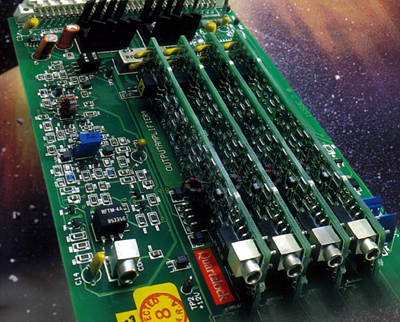

OEM, eurocard, 1 input, 4 output, high-performance, distribution amplifier
