A10-XLB

The Quartzlock A10-XLB rubidium frequency reference is a 10 MHz high-stability standard with complete portability and multiple power supply options.

Features

Low phase noise
Internal Lithium-Ion rechargable battery
Low drift
Internal battery charger
High Stability
External 12v DC & 24v DC operation
3 Year warranty
External AC operation & charging
4 hours battery operation
Full battery back-up redundant supply operation

Applications

Field systems & test solutions
Field frequency reference
Portable frequency standard
W-CDMA wireless transmitter reference
HDTV transmitter reference

Output Frequency10MHz

Output Level7dBm

Number of Outputs1

STS1s3x10-11

STS10s 1x10-11

STS100s3x10-12

Aging 1 Day 3x10-12

Aging 1 Month4x10-11

Aging 1 Year 5x10-10

Phase Noise 100Hz120dBc

Phase Noise 1kHz 140dBc

Phase Noise 10kHz145dBc

Harmonics dBc40dBc

Spurious dBc80dBc

Warm Time5 min

Retrace3x10-11

PSU Nominal 24V

PSU Min 22V

PSU Max30V

Current500mA warm

SupplyDC

Product Options:

This product can have the following options applied to change its specification

Option N - No Options Available

Images & Information

Enlarge

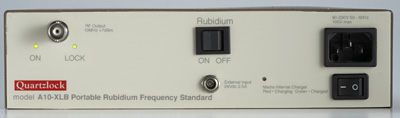

Portable rubidium frequency standard with LPRO as the standard option

Downloads

Datasheet

Manual
