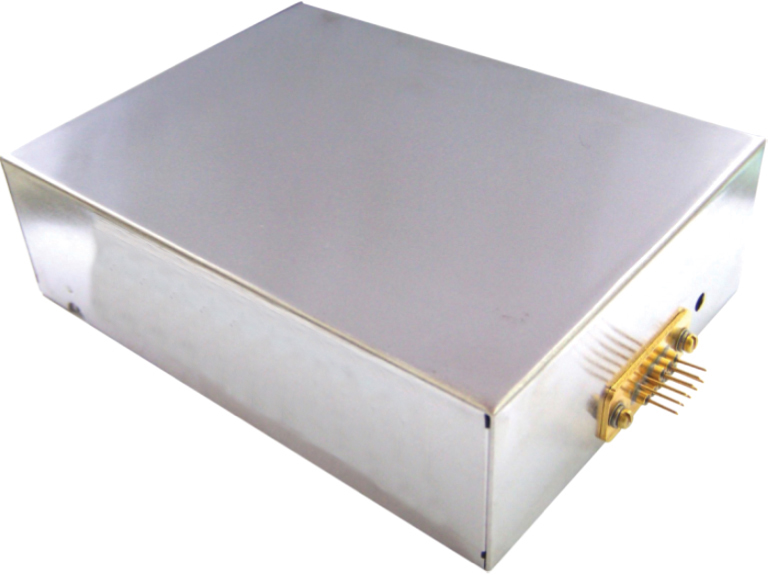

A10-HPRO

OEM component, LPRO-compatible rubidium oscillator.

Features

  • RS232 & GPS interface options
  • Low phase noise to -160dBc/Hz
  • 3 year warranty
  • Tuned Rb cell
  • A class & HSRO stability variants
  • 1.5x10-11/1s, 1.5x10-12/100s stability

Benefits

  • Low cost, high performance standard
  • Fits 1U case
  • Low failure risk
  • Simple integration into systems

Applications

  • Frequency calibration
  • Telecom network synchronisation, LANs, GPS, MCG
  • Broadcast
  • Cellular wireless base stations
  • 3-G / 4-G base station
  • Test and measurement
  • Digital audio recording

Standard Specification:
Output Frequency 10 MHz
Output Level +7 dBm +/-2 dBm into 50 Ohms
Number of Outputs 1
STS1s 1.5x10-11
STS10s 5x10-12
STS100s 1.5x10-12
Aging 1 Day 3x10-12
Aging 1 Month 4x10-12
Aging 1 Year 5x10-10
Phase Noise 1Hz -75 dBc/Hz
Phase Noise 10Hz -89 dBc/Hz
Phase Noise 100Hz -125 dBc/Hz
Phase Noise 1Kz -140 dBc/Hz
Phase Noise 10Kz -145 dBc/Hz
Harmonics dBc -50 dBc
Spurious dBc -75 dBc
Warm Time 8 min
Retrace 2x10-11
PSU Nominal 24 V dc
PSU Min 23.5 V dc
PSU Max 24.5 V dc
Current 500 mA warm
Supply DC
OT Min -25 C
OT Max 50 C
ST Min -55 C
ST Max 80 C

Optional Extras

Below you can choose from a range of optional extras to ensure the closest match to your requirements.
